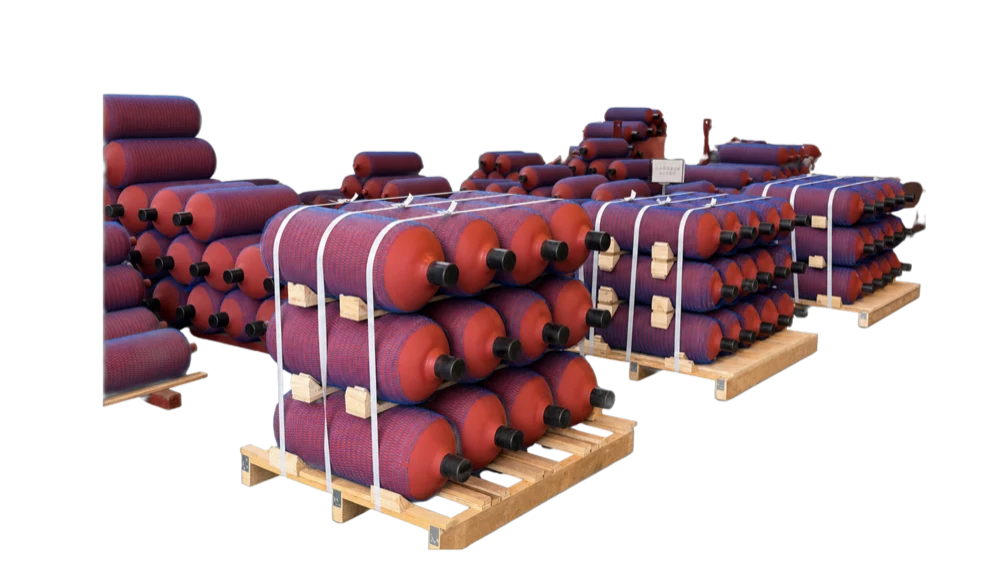

Accumulators (Necked-in)
Hydraulic accumulators for energy storage and pressure stabilisation in hydraulic systems. Widely used in marine hydraulic equipment, steering gear systems and deck machinery.
Key Features
- Energy storage — assists pump source, provides instant high flow on demand
- Absorbs pulsation — reduces system pressure fluctuation and shock
- Bladder, piston and diaphragm types available
- Shell material: high-strength alloy steel
- Bladder material: NBR or FKM
Technical Parameters
Nominal Pressure
10 – 31.5 MPa
Nominal Volume
0.4 – 100 L
Structure
Bladder type (L)
Connection
Thread or flange
Media
Hydraulic oil, water-glycol
Working Temperature
−10 °C to +70 °C
Shell Material
High-strength alloy steel
Bladder Material
NBR / FKM
Model Specifications
Accumulator — Standard Models
| Model | Volume (L) | Pressure (MPa) | Diameter (mm) | Height (mm) | Weight (kg) |
|---|---|---|---|---|---|
| NXQ-A-0.4/31.5 | 0.4 | 31.5 | 89 | 280 | 4 |
| NXQ-A-1.0/31.5 | 1.0 | 31.5 | 114 | 340 | 8 |
| NXQ-A-2.5/31.5 | 2.5 | 31.5 | 114 | 520 | 12 |
| NXQ-A-4.0/31.5 | 4.0 | 31.5 | 168 | 430 | 18 |
| NXQ-A-6.3/31.5 | 6.3 | 31.5 | 168 | 560 | 24 |
| NXQ-A-10/31.5 | 10 | 31.5 | 219 | 550 | 35 |
| NXQ-A-25/31.5 | 25 | 31.5 | 219 | 1050 | 65 |
| NXQ-A-40/31.5 | 40 | 31.5 | 273 | 1100 | 110 |
| NXQ-A-63/31.5 | 63 | 31.5 | 273 | 1600 | 160 |
