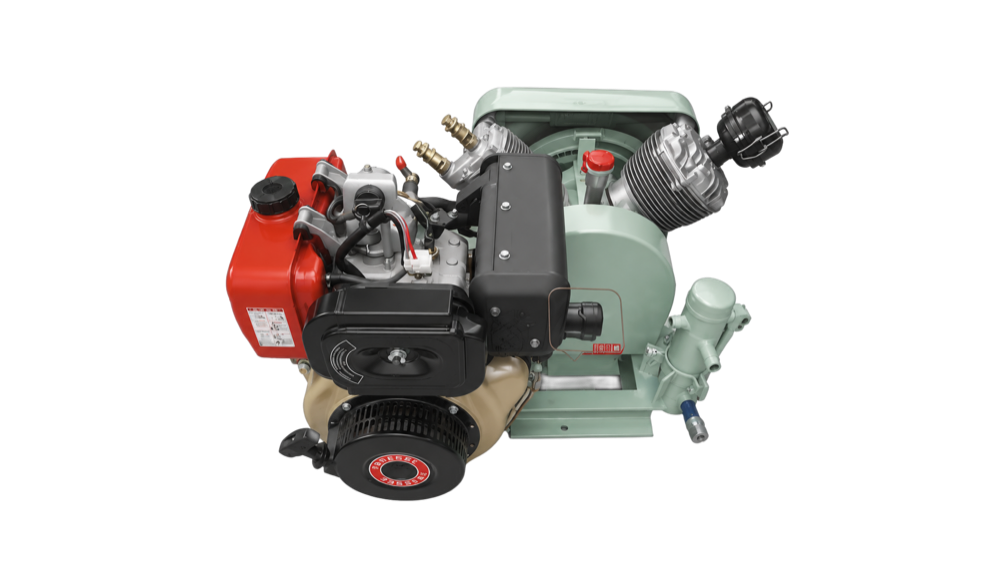

Emergency Compressors
SOLAS-compliant emergency compressor with independent power source (diesel engine or manual operation) to maintain starting air supply during total ship power loss scenarios.
Key Features
- Independent of ship power grid — diesel driven or manual operation
- Fast start — simple structure, quick response time
- Compliant with SOLAS International Convention for Safety of Life at Sea
- CCS classification certified
- Optional mobile base for flexible deployment
Technical Parameters
Discharge Pressure
3.0 MPa
Cooling Method
Air cooled
Drive Type
Diesel engine or manual crank
Start Method
Hand crank / electric start
Certification
CCS Classification, SOLAS compliant
Model Specifications
Diesel-Driven Emergency Compressor
| Model | Pressure (MPa) | Stages | Speed (r/min) | Capacity (m³/h) | Diesel Power (kW) | Drive | Dimensions (mm) | Weight (kg) |
|---|---|---|---|---|---|---|---|---|
| WP18L | 3.0 | 2 | 1450 | 18 | 6.3 | Belt | 850×730×700 | 180 |
| WP25L | 3.0 | 2 | 1450 | 25 | 6.3 | Belt | 850×730×700 | 180 |
Manual Emergency Compressor
| Model | Pressure (MPa) | Stages | Crank Speed (r/min) | Capacity (m³/h) | Drive | Cooling | Dimensions (mm) | Weight (kg) |
|---|---|---|---|---|---|---|---|---|
| H-6 | 3.0 | 2 | 45 | 0.36 | Manual | Air Cooled | 600×400×500 | 45 |
